Detailed Specs
XLSpecialized Trailers
XL DEFENDER: 90 HDE
Additional Information
Trailer
48’ or 53’
102"
10’ 5”
13HP power unit, base of neck,
aluminum cover, dual hydraulics
36” flip neck
49"
16"
84"

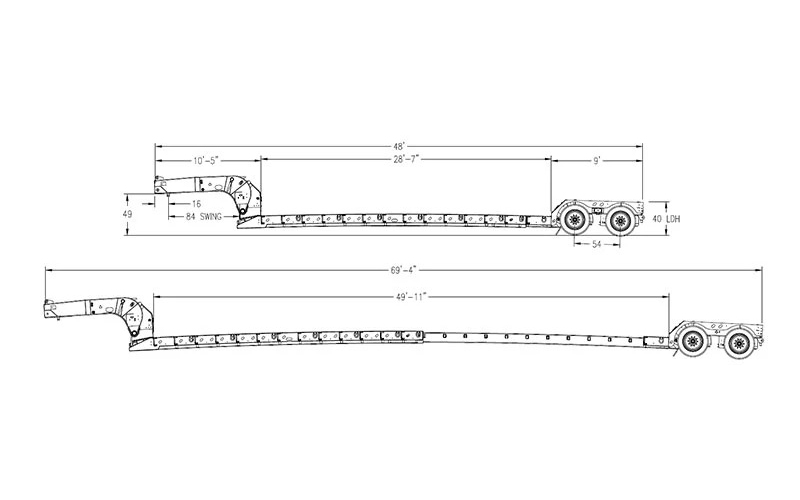

48’ OAL: 28’ 7” - 49’ 11” long - 30”
stationary deck
53’ OAL: 33’ 7” - 59’ 11” long - 30”
stationary deck
6"
20"
removable swing out outriggers
battery back up w/ 4-way plug
54”
16 1/2” x 7” brakes
2 pair spring brakes
9’
battery back up w/ 4-way plug
25,000 lb air ride
raise and lower valve
manual ride height control
liquid filled air gauge
(2) 25,000 lb nominal
54” axle spacing
hub pilot, outboard drums
4S2M ABS
16 1/2” x 7” brakes
2 pair spring brakes
8.25 x 22.5 steel inside rims
8.25 x 22.5 aluminum polished
outside rims
255 / 70R / 22.5 tires
12V sealed Grote harness
rubber mounted LED lights
3 tail light package with
aluminum cover
4” amber strobe used as 3rd tail light
(3) 3/4” LED clearance lights per side
1 mid-turn light per side
7 pole electric socket
black
air & electric done after paint
5 year structural
3 year paint
Description

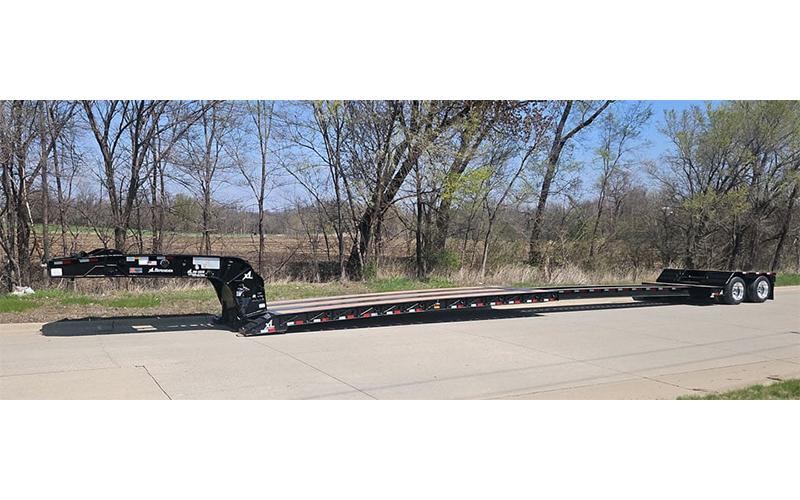

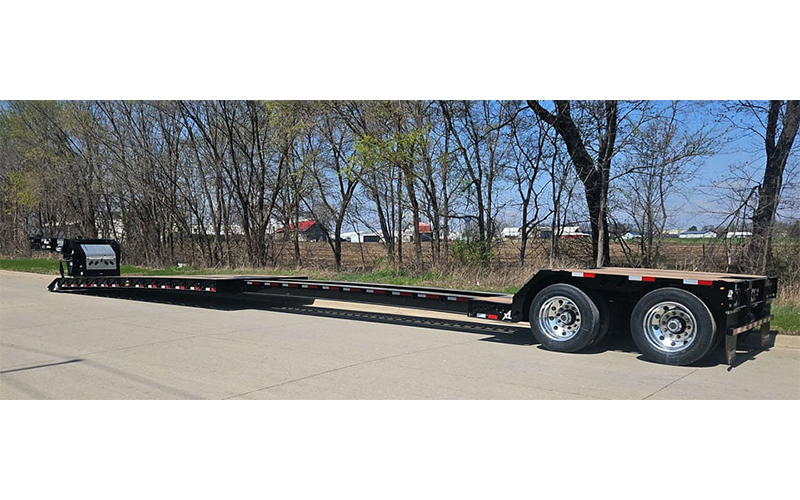

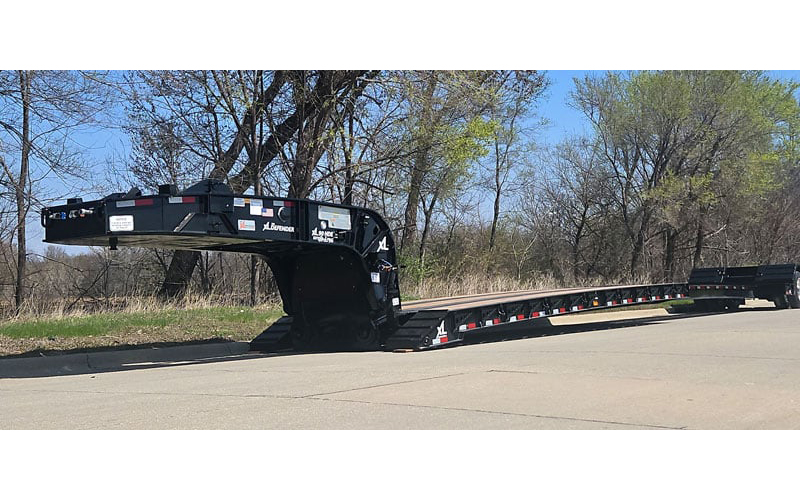

XL’s Hydraulic Detachable Extendables (HDE) are extendable lowboy trailers featuring our Classic Hydraulic Gooseneck. This commercial style gooseneck is robust and versatile, offering seven ride height positions. The HDE comes with a decked over wheel area for additional storage space. The hydraulic detachable gooseneck comes apart from the main deck efficiently, using the truck’s wet kit or a motor to allow loading from the front.
