XLSpecialized Trailers XL 90 MDE
Detailed Specs
XLSpecialized Trailers
XL 90 MDE
Additional Information
Trailer

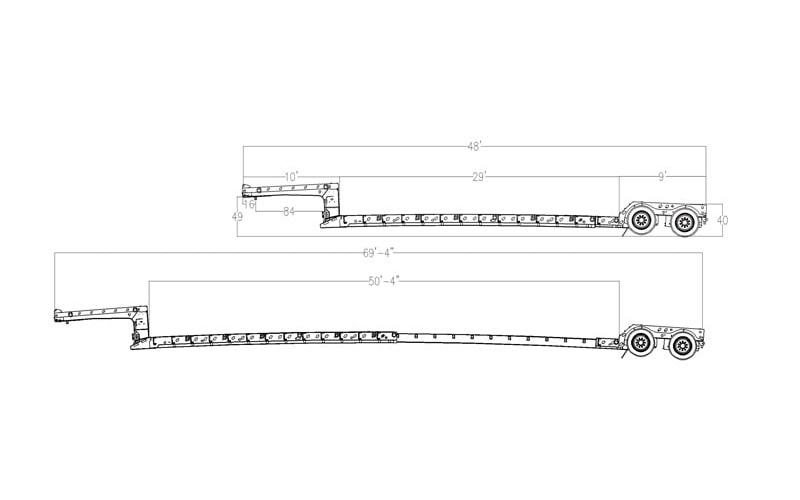

48’ - 69’ 4”
102”
10"
pull out lights
1 pair clearance lights
1 3/8” Apitong decking - raised
registration holder
36” flip neck (for 80 & 90 only)
49"
16"
84"
29’ - 50’ 4”
6"
20"
storage compartment in rear
of main deck (mini deck)
removable swing out outriggers
Oak outrigger planks, 2” x 10”
1 3/8” Apitong decking - raised
additional clearance lights
4-way plug(s)
1 pair clearance lights
pull out lights
4” amber strobe tail light
additional tail light
battery back up
(1) 4-way plug
1 3/8” Apitong decking - raised
dock bumpers
"16 1/2” x 7” brakes
2 pair spring brakes"
54” axle spacing: 9’ long
60” axle spacing: 9’ 6” long
1 pair clearance lights
pull out lights
4” amber strobe tail light
additional tail light
battery back up
(1) 4-way plug
1 3/8” Apitong decking - raised
dock bumpers
25,000 lb air ride
raise and lower valve
manual ride height control
liquid filled air gauge air weigh digital scale
2
PSI tire inflation system
hubometer
TP axles (same inner & outer bearings)
limit straps
dust shields
cam covers
8.25 x 22.5 steel rims
255 / 70R / 22.5 tires
aluminum mill wheels (inside)
aluminum mill wheels (outside)
aluminum polished wheels (outside)
aluminum Durabright wheels (outside)
Michelin 255/70R/22.5 tires
Goodyear 275/70R/22.5 tire
(41” rear bridge)
12V sealed Grote harness
rubber mounted LED lights
2 tail light package with
aluminum cover
2 clearance lights per side
1 mid-turn light per side
7 pole electric socket
black, IH red, CAT yellow or white
air & electric done after paint
non-standard paint colors
non-standard metallic paint
5 year structural
3 year paint
XL 70 MDE
XL 80 MDE
XL 90 MDE
Description
XL’s Mechanical Detachable Extendables (MDE) are extendable lowboy trailers featuring a mechanical style removable gooseneck. The mechanical detachable gooseneck is a lightweight option that comes apart from the main deck efficiently.
