XLSpecialized Trailers XL 90 BM
Detailed Specs
XLSpecialized Trailers
XL 90 BM
Additional Information
Trailer

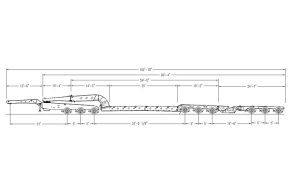

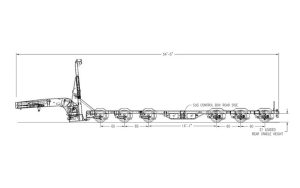

53’ closed, opens to
184’ 2” with pullout bumper
102"
9’
49”
19”
77"
T-1 flange, 80K web
13HP hydraulic power unit
51”
24” long rolling bunk
24” long adjustable
non-rolling bunk
deck inserts
71”
12 1/4” x 7 1/2” brakes
1 pair spring brakes
25,000 lb air ride
liquid filled air gauge
Air-weigh digital scale
3
hubometer
TP axles (same inner &
outer bearings)
dust shields
cat eye systems
disc brakes
6.75 x 17.5 steel rims
245/70R/17.5 tires
customer specified tires
customer specified mud flaps
aluminum mill wheels
aluminum polished wheels
Michelin tires
PSI tire inflation system
12V sealed Grote harness
rubber mounted LED lights
3 tail light package with
aluminum cover
amber strope as 3rd stop turn tail
rear facing work light on upper
deck
power on/off indicator
system alignment indicator
black, IH red, CAT yellow or white
air & electric done after paint
non-standard paint colors
non-standard metallic paint
5 year structural
3 year paint
XL 90 BM
Description

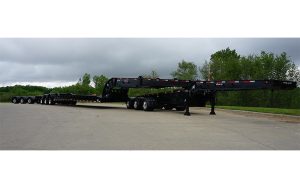

The XL BladeMate provides a specialized solution for hauling wind tower blades. This versatile heavy-haul wind trailer can be adjusted to fit many sizes and brands of blades. The Blademate is available in a four-beam design. All of the telescoping trailer beams, as well as the pullout bumper, use XL’s trusted extendable technology to create a hassle-free extension. Choose from a unique hydraulically operated self-steering system which increases safety and efficiency by automatically keeping the axles in line with the kingpin, or a bump-steer option, both with manual manueverability around obstacles.
