XLSpecialized Trailers XL 80 JEEP
Detailed Specs
XLSpecialized Trailers
XL 80 JEEP
Additional Information

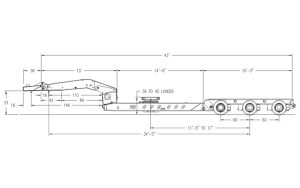

Trailer
24’ 11”
102"
9’8”
49"
16"
84"
50"
16 1/2” x 7” brakes
1 pair spring brakes
limit chains on all axles
60” slider
50” 5th wheel height
25,000 lb air ride
raise and lower valve
2
8.25 x 22.5 steel rims
255 / 70R / 22.5 tires
12V sealed grote harness
rubber mounted LED lights
2 tail light package with
aluminum cover
2 clearance lights per side
7 pole electric socket
black, IH red, CAT yellow or white
air & electric done after paint
non-standard paint colors
non-standard metallic paint
5 year structural
3 year paint
Description
XL offers Steer Dollies in many configurations—the most popular is the 6-Axle Steer Dolly. Between the axles is a large 34″ x 94″ loading platform which pivots and prompts the axles to steer. With a 140° total load platform travel (70° travel in each direction) and progressive steering axles, the XL Steer Dolly maneuvers long loads with ease. Get around tight obstacles using the manual override, which allows for use of a remote to steer the axles when needed.
