Detailed Specs
XLSpecialized Trailers
XL 80 HDG: MINI DECK
Additional Information

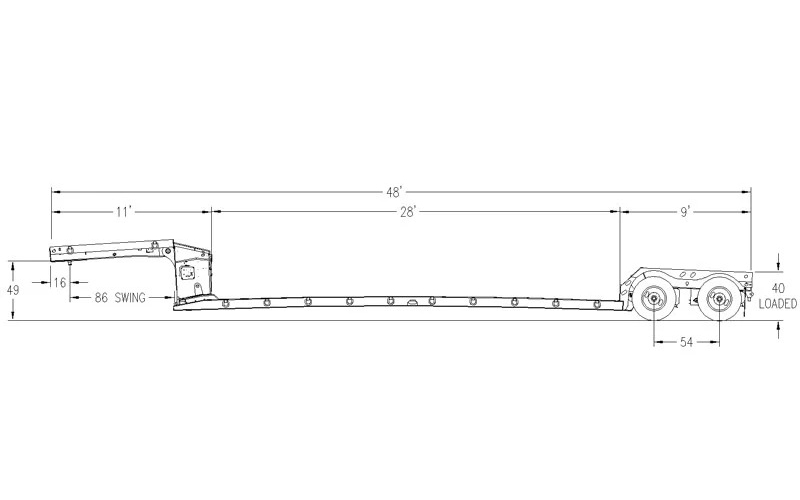

Trailer
48’ or 53’
102”
hydraulic low-profile full-width
11’ long
pan style d-rings 36” flip neck extension
49”
16”
86”
48’ version: 28’ long,
53’ version: 33’ long,
4”
12”
1 3/8” Apitong decking - raised,
additional clearance lights,
4-way plug(s),
chain drops,
additional d-rings,
Durabek non-slip on center deck
9’ long,
40” deck height,
1 1/8” Apitong decking flush,
2 flag holders,
2 bent d-rings in tail channel,
2 pair pan-style d-rings, on corners,
frame reinforcement for flip axle
18 1/2” x 7” brakes
25,000 lb air ride,
raise and lower valve,
manual ride height control
liquid filled air gauge,
air weigh digital scale,
control in aluminum box - ball valves,
electric dump valve with 4-way plug
and wire.
2) 25,000 lb nominal
hub pilot, outboard drums
4S2M ABS
PSI tire inflation system
hubometer,
TP axles (same inner & outer bearings)
8.25 x 22.5 steel rims
255 / 70R / 22.5 tires
aluminum mill wheels (inside),
aluminum mill wheels (outside),
aluminum polished wheels (outside),
aluminum Durabright wheels
(outside),
Michelin 255/70R/22.5 tires.
12V sealed Grote harness
rubber mounted LED lights
black, IH red, CAT yellow,
air & electric done after paint
non-standard paint colors,
non-standard metallic paint
5 year structural
1 year paint
XL 60 HDG: Mini-deck
XL 70 HDG: Mini-deck
XL 80 HDG: Mini-deck
Description

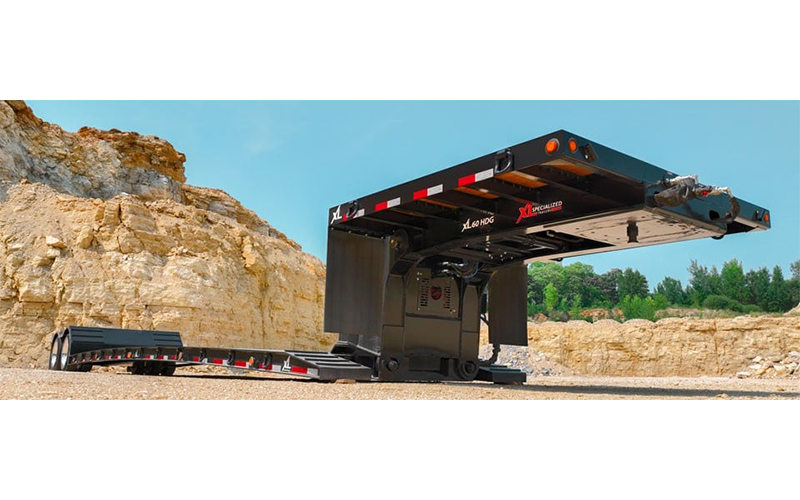

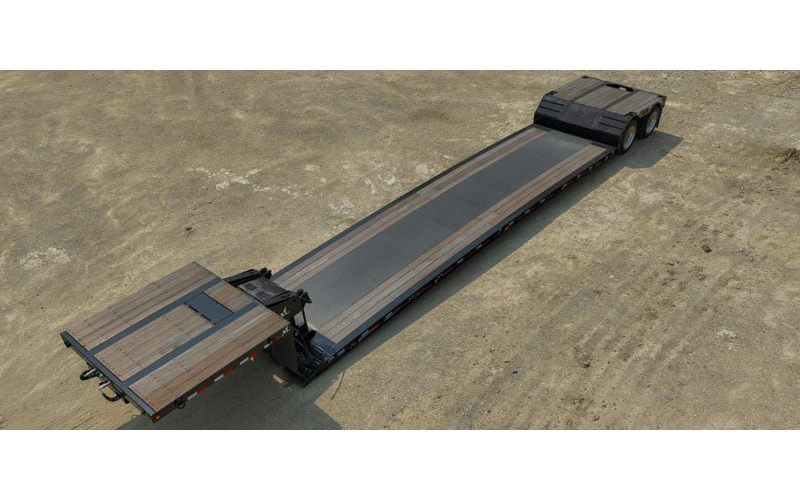

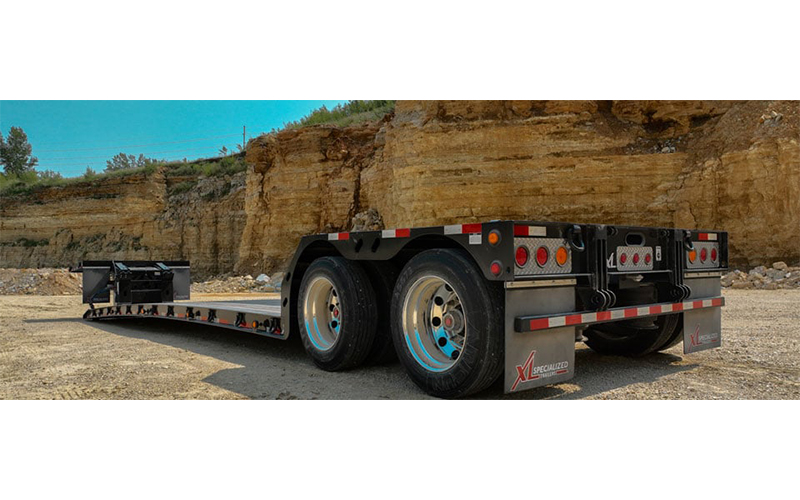

XL’s Low-Profile Hydraulic Detachable Goosenecks feature a low-profile design, five position variability in ride heights, and heavy-duty capabilities. There is a relief cut out on the underside of the neck which provides ample room for truck fenders to clear along with easy access to the engine through an access panel. These are the lightest weight hydraulic gooseneck option and are popular for construction style lowboys.
