XLSpecialized Trailers XL 80 FDE
Detailed Specs
XLSpecialized Trailers
XL 80 FDE
Additional Information
Trailer
48’-81’
102"
10"
49"
24"
82"
58"
spare tire carrier
1 3/8” Apitong decking - raised
additional 2” side clearance lights
4” amber strobe tail light
(1) 4-way plug
48” head board (non-wrap around)
side load sign
54"
16 1/2” x 7” brakes
77 1/2” tracking
spare tire carrier
1 3/8” Apitong decking - raised
additional 2” side clearance lights
4” amber strobe tail light
(1) 4-way plug
48” head board (non-wrap around)
side load sign
2
54” axle spacing
60” axle spacing
10’ 1” axle spacing
49” axle spacing (spring suspension
only)
PSI tire inflation system
hubometer
cam covers and dust shields
8.25 x 22.5 steel rims
11R / 22.5 tires
aluminum mill wheels (inside)
aluminum mill wheels (outside)
aluminum polished wheels (outside)
aluminum Durabright wheels (outside)
12V sealed Grote harness
rubber mounted LED lights
2 tail light package with
aluminum cover
3 clearance lights per side
1 mid-turn light per side
7 pole electric socket
black, IH red, CAT yellow or white
air & electric done after paint
non-standard paint colors
non-standard metallic paint
5 year structural
3 year paint
XL 70 FDE
XL 80 FDE
Description

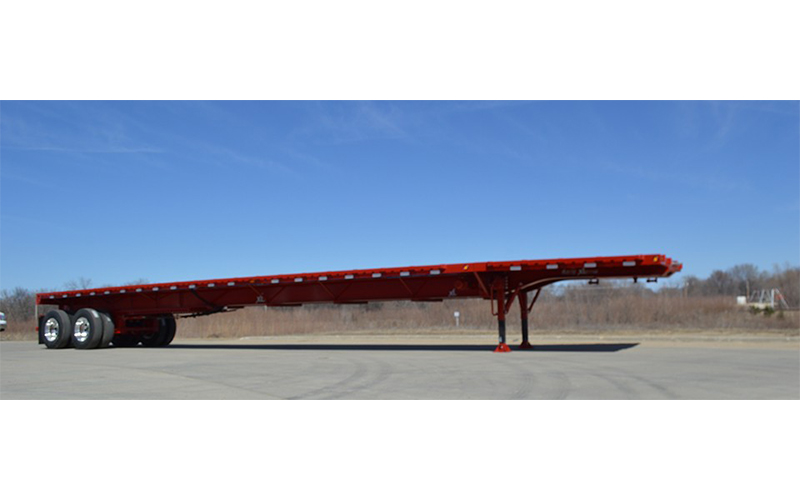

XL’s Flat Deck Extendables (FDE) feature a flat deck with no drop and the neck does not detach. This platform trailer extends to 81 feet long standard when fully extended. Constructed from steel, with 100k flange and 80k web, XL’s FDE is a durable option.
