Detailed Specs
Description
OVERALL LENGTH 48′
OVERALL WIDTH 102″
CAPACITY 80,000 LB DISTRIBUTED; 70,000 LB IN 16′
WEIGHT +/- 3% 15,486 LB

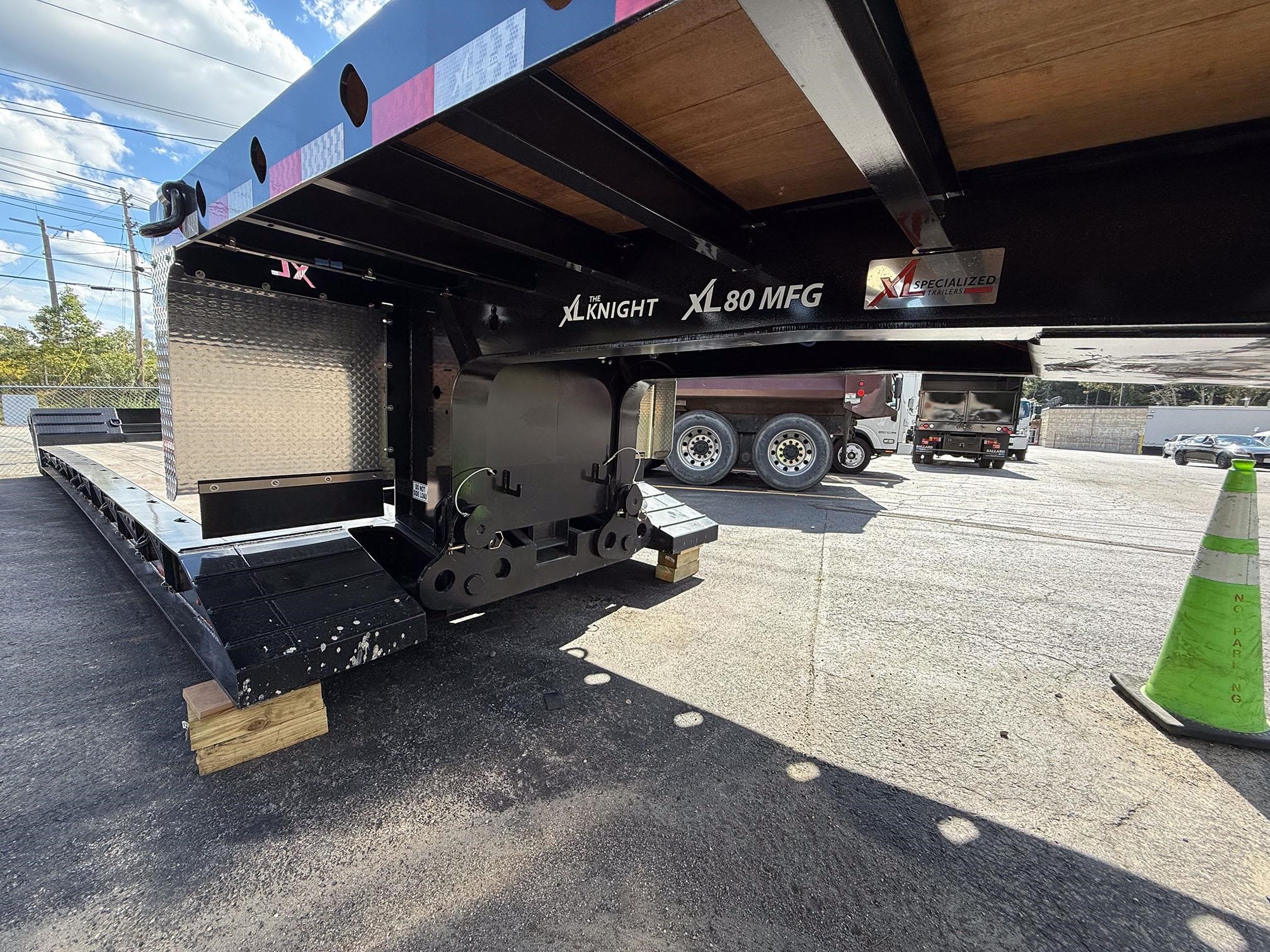

GOOSENECK
NECK STYLE FULL-WIDTH NECK
LENGTH 10′
KINGPIN SETTING 16″
SWING CLEARANCE 84″
5TH WHEEL HEIGHT 49″
DECKING 1 1/8″ APITONG DECKING, FLUSH
D-RINGS ( 2 ) BENT D-RINGS PER SIDE; ( 1 ) PAN STYLE IN EACH CORNER
MUDFLAPS ALUMINUM MUDFLAPS
TOOL BOX TOOL BOX ON BASE OF NECK WITH ALUMINUM LOCKABLE LID – RACK AND WORK LIGHT; ( 1 ) PAIR PULLOUT LIGHTS +$942; 3 HEIGHT SETTING FRONT CONNECTOR PLATE; REGISTRATION HOLDER; ( 1 ) ADDITIONAL PAIR OF MICRONOVA CLEARANCE LIGHTS

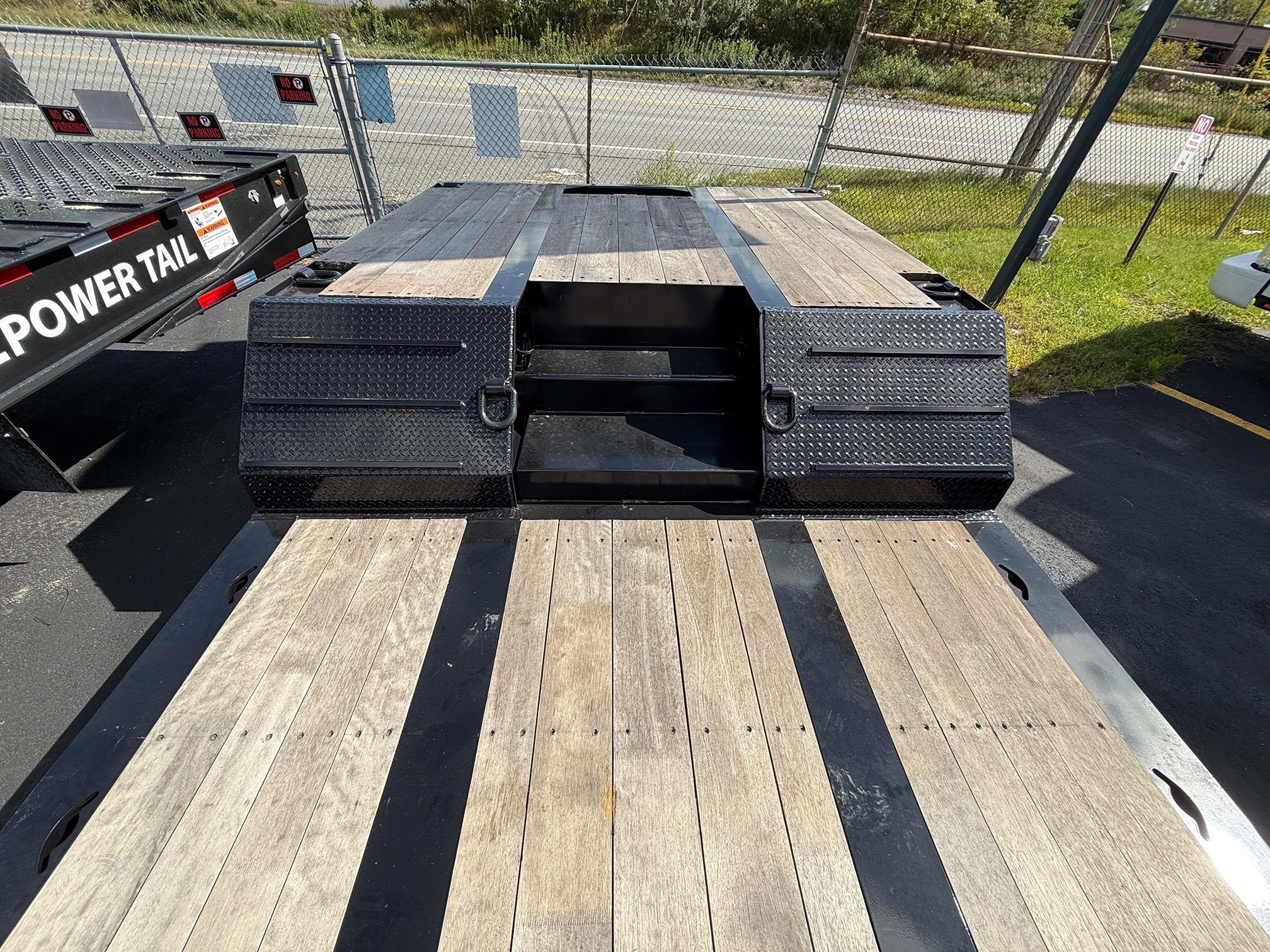

MAIN DECK
LENGTH 29′
LOADED DECK HEIGHT 18″ W/ 6″ GROUND CLEARANCE
DECKING 1 1/8″ APITONG DECKING, FLUSH – CENTER DECK COVERED; STORAGE COMPARTMENTS AT FRONT OF MAIN DECK
CROSSMEMBERS 6″ & 4″ JR I-BEAM ON 12″ ALTERNATING CENTERS
BEAMS ( 4 ) 12″ FAB I-BEAMS
D-RINGS ( 8 ) BENT D-RINGS PER SIDE
OUTRIGGERS REMOVABLE SWINGOUT OUTRIGGERS ON 24″ CENTERS
CHAIN DROPS 24″ CENTERS – OUTSIDE BEAMS
RAMPS TAPERS TO 4″; ( 4 ) ADDITIONAL PAIR OF MICRONOVA CLEARANCE LIGHTS

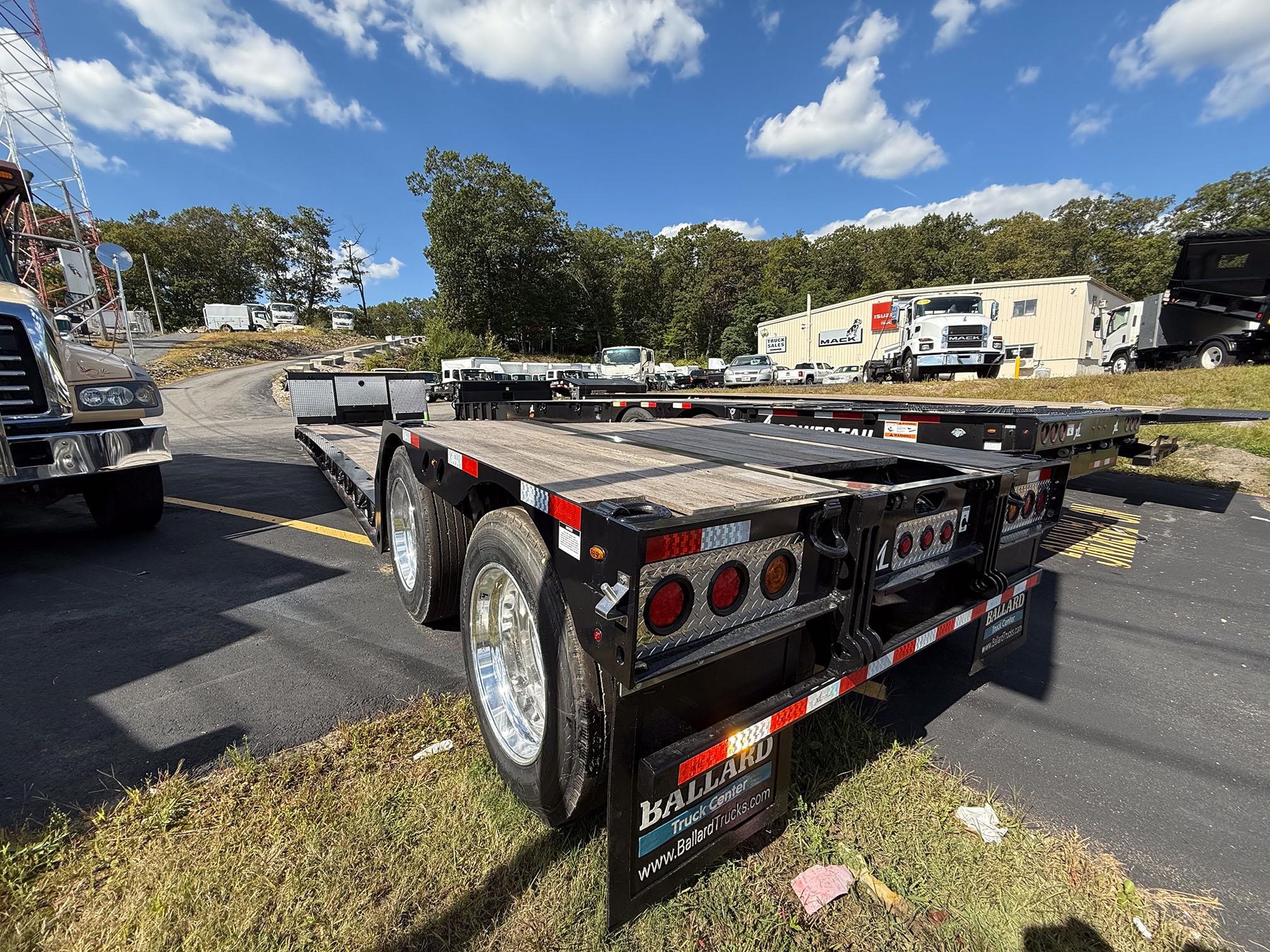

REAR DECK
LENGTH 9′
LOADED DECK HEIGHT 40″
AXLES ( 2 ) 25,000 LBS. NOMINAL (5/8″ WALL)
SUSPENSION HENDRICKSON / 25,000 CAPACITY/ AIR RIDE
AXLE SPACING 54″
ABS 4S2M WITH SPRING BRAKES ON ( 2 ) AXLES
TIRES 255 / 70R / 22.5 ( H )
WHEELS INSIDE STEEL DISC
WHEELS OUTSIDE ALUMINUM POLISHED DISC
BRAKES 16 1/2” X 7″
DRUMS OUTBOARD

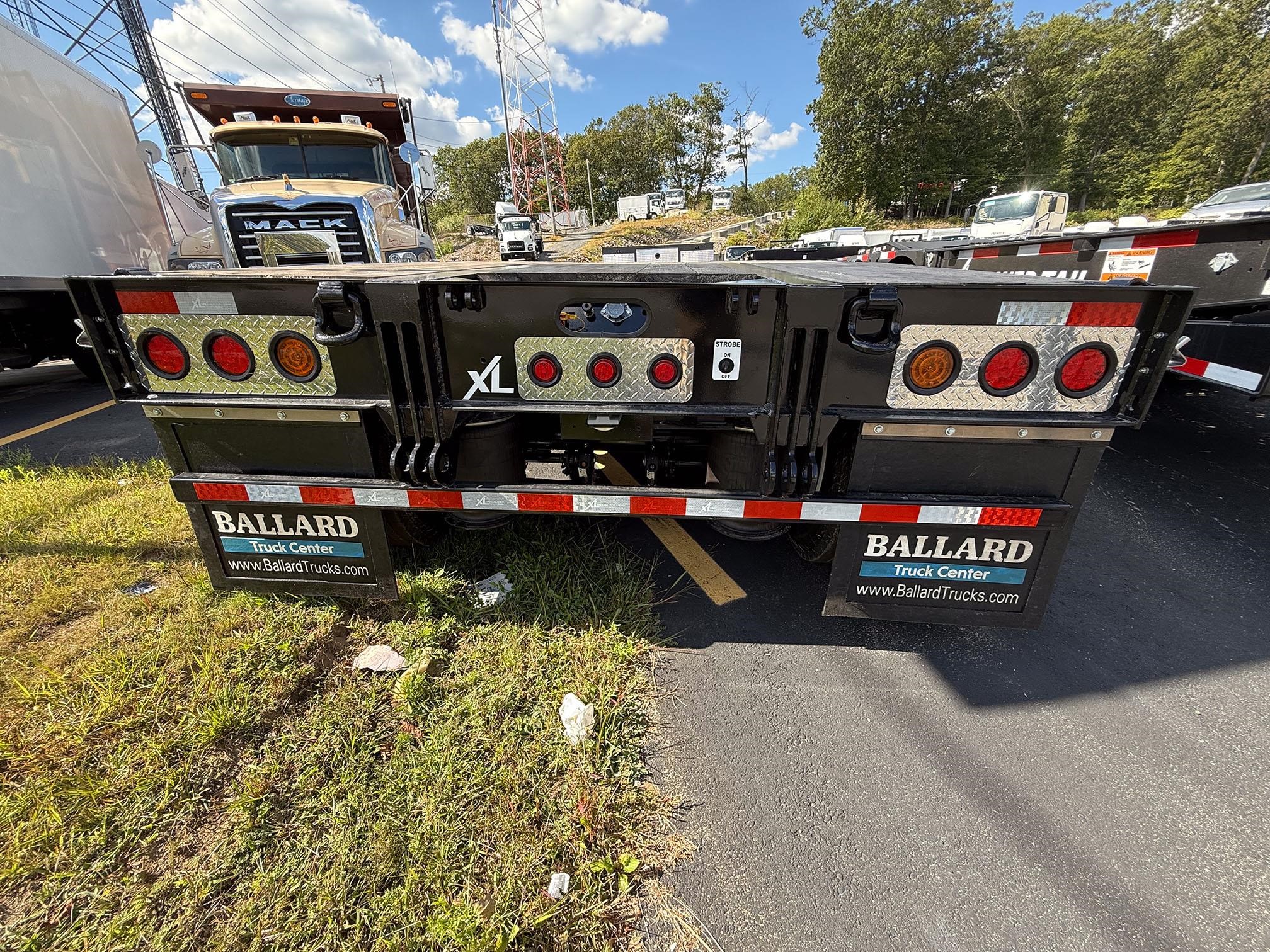

ELECTRICAL 12V SEALED GROTE SYSTEM WITH ( 3 ) TAILLIGHT ALUMINUM PACKAGE; 4″ AMBER STROBE TO BE USED AS 3RD TAILLIGHT; ( 1 ) ADDITIONAL PAIR OF MICRONOVA CLEARANCE LIGHTS; ( 1 ) PAIR PULLOUT LIGHTS +$942
DECKING 1 1/8″ APITONG DECKING, FLUSH; 2′ X 2′ CUT OUT IN TRANSITION AREA
D-RINGS ( 1 ) PAN STYLE D-RING IN EACH CORNER; ( 1 ) PAIR FLAT D-RINGS ON REAR TRANSITION; ( 2 ) BENT D-RINGS IN TAIL CHANNEL
BRACKET CONNECTION TYPE A

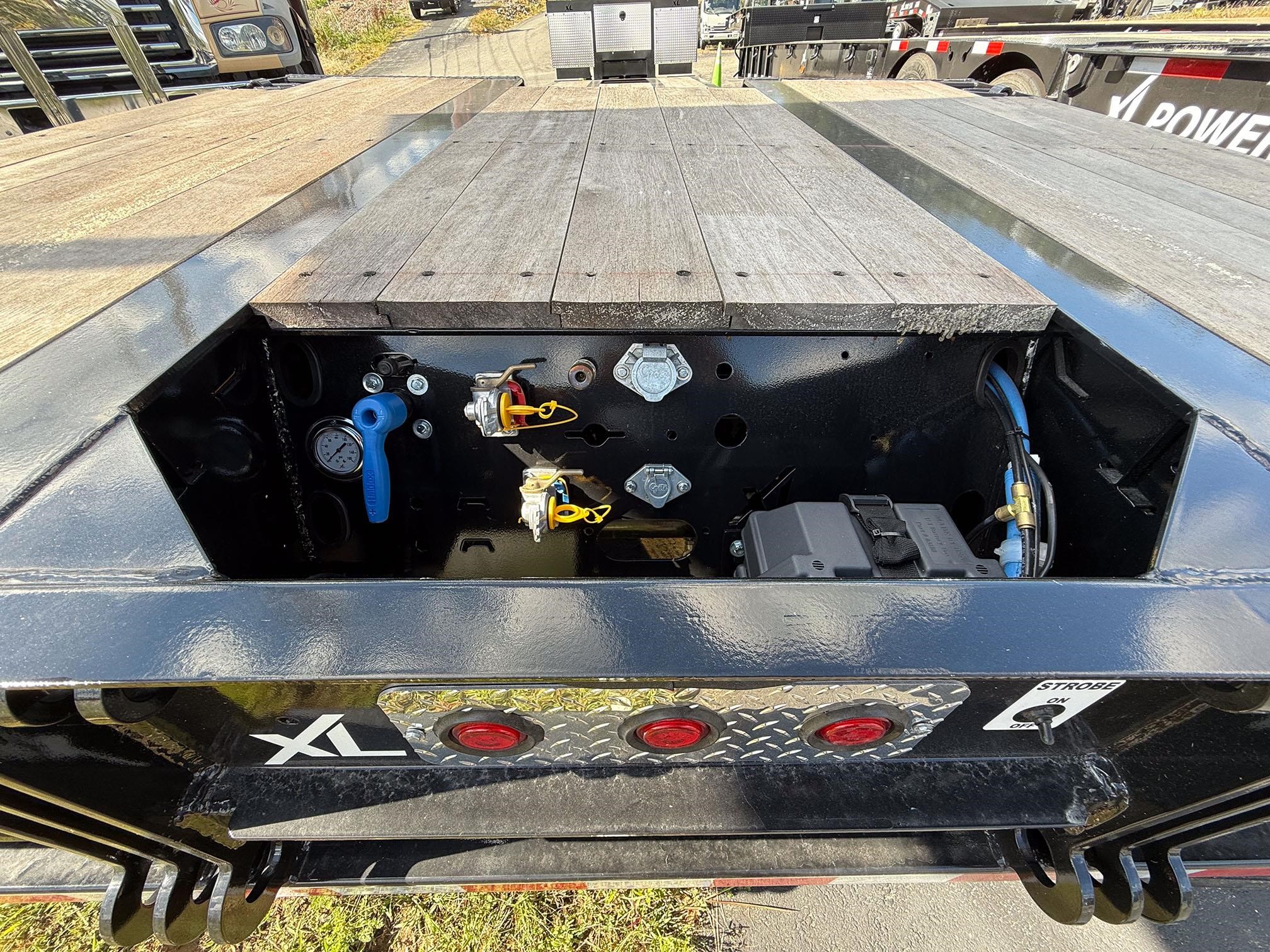

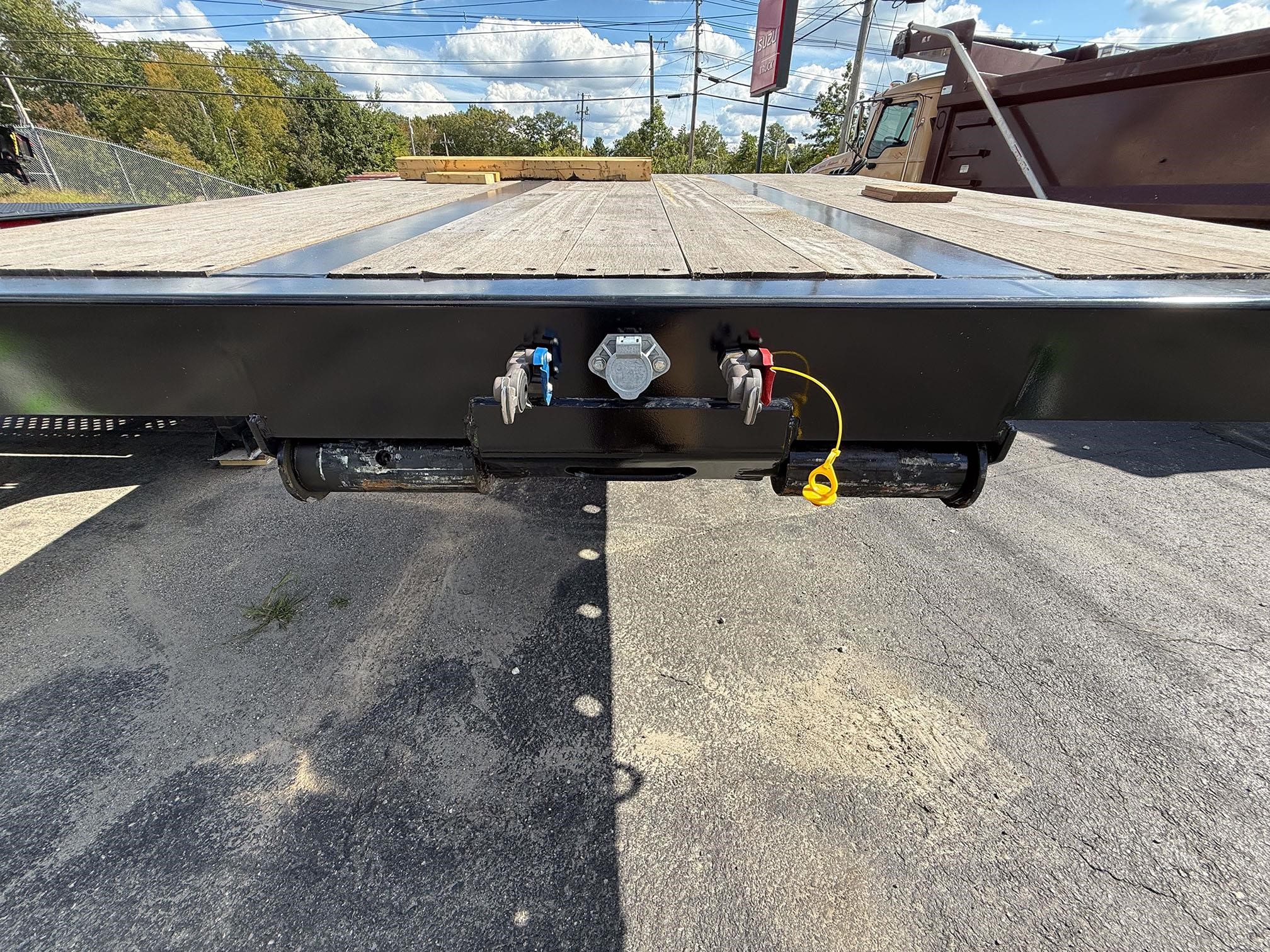

REAR CONNECTION PREP FOR FLIP AXLE; BATTERY BACKUP W/ 4 WAY PLUG +$645
AIR SYSTEM
MANUAL RIDE HEIGHT CONTROL
COLAS+ RAISE AND LOWER VALVE
LIQUID FILLED AIR GAUGE
ADDITIONAL
( 2 ) PAIR EZ MOUNT FLAG HOLDERS
RUBBER GLAD HAND COVERS
ALL CLEARANCE LIGHTS TO BE MICRONOVA
