Detailed Specs
XL SPECIALIZED
XL 80 PT
Worcester
2026
4U3A04824TL024909
Steel
Tandem
Aluminum/Steel
48
Apitong Floor
Description

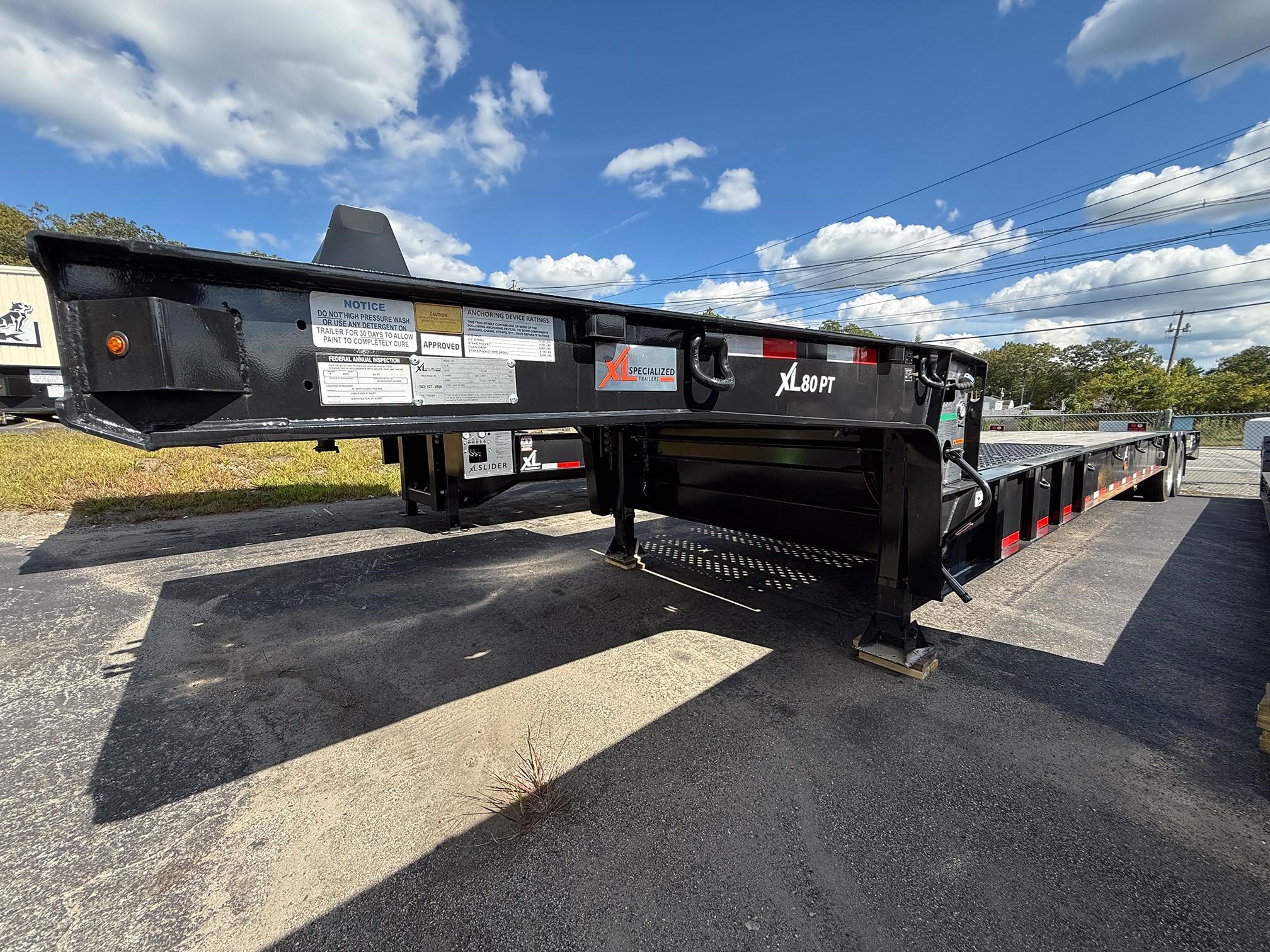

XL Specialized 80 Power Tail Trailer
OVERALL LENGTH 48′
OVERALL WIDTH 102″
CAPACITY 80,000 LB DISTRIBUTED; 50,000 LB IN 10′
WEIGHT +/- 3% 17,507
GOOSENECK
LENGTH 9′ WITH 90º SLOPE
KINGPIN SETTING 16″
SWING CLEARANCE 86″
5TH WHEEL HEIGHT 49″

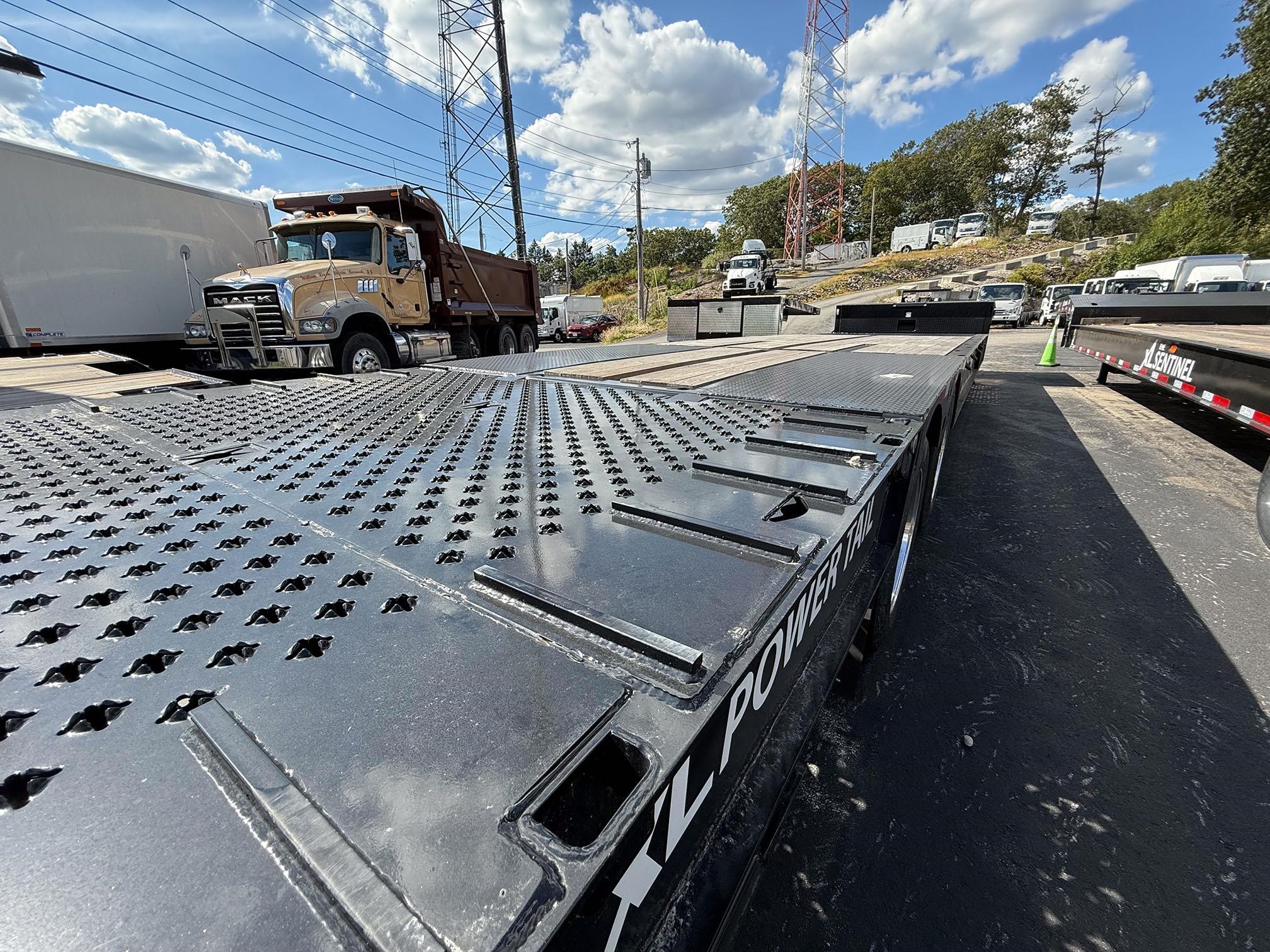

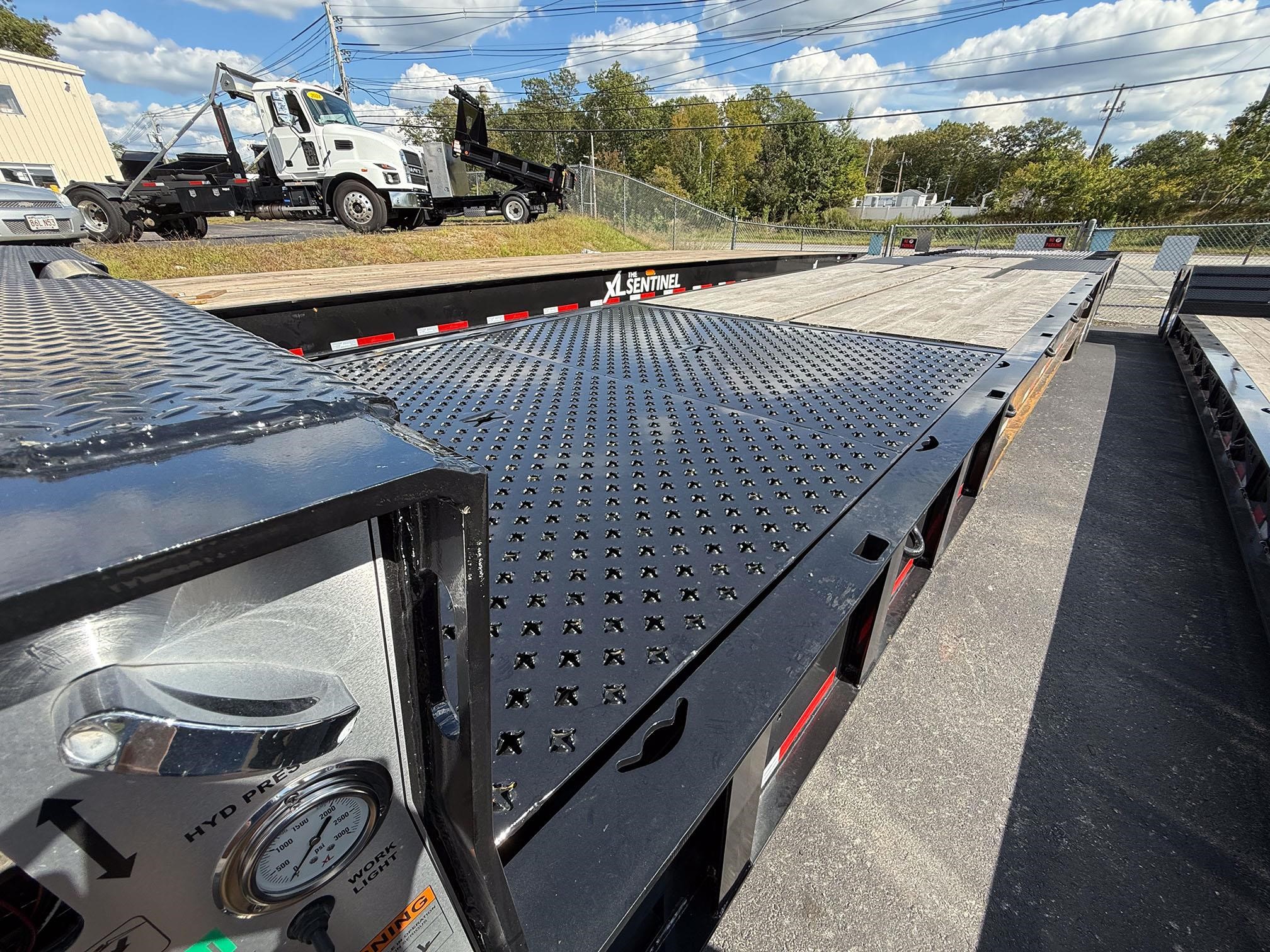

DECKING STEEL TREAD PLATE DECKING
D-RINGS ( 2 ) BENT D-RINGS PER SIDE
CHAIN DROPS ON 24″ CENTERS ALTERNATING WITH STAKE POCKETS OUTSIDE BEAMS
STAKE POCKETS ON 24″ CENTERS ALTERNATING WITH CHAIN DROPS OUTSIDE BEAMS
LANDING GEAR 2 SPEED LANDING GEAR – HANDLE ON DRIVERSIDE
HYDRAULICS RUNS OFF WET KIT (5-12 GPM HYD. REQUIREMENTS)

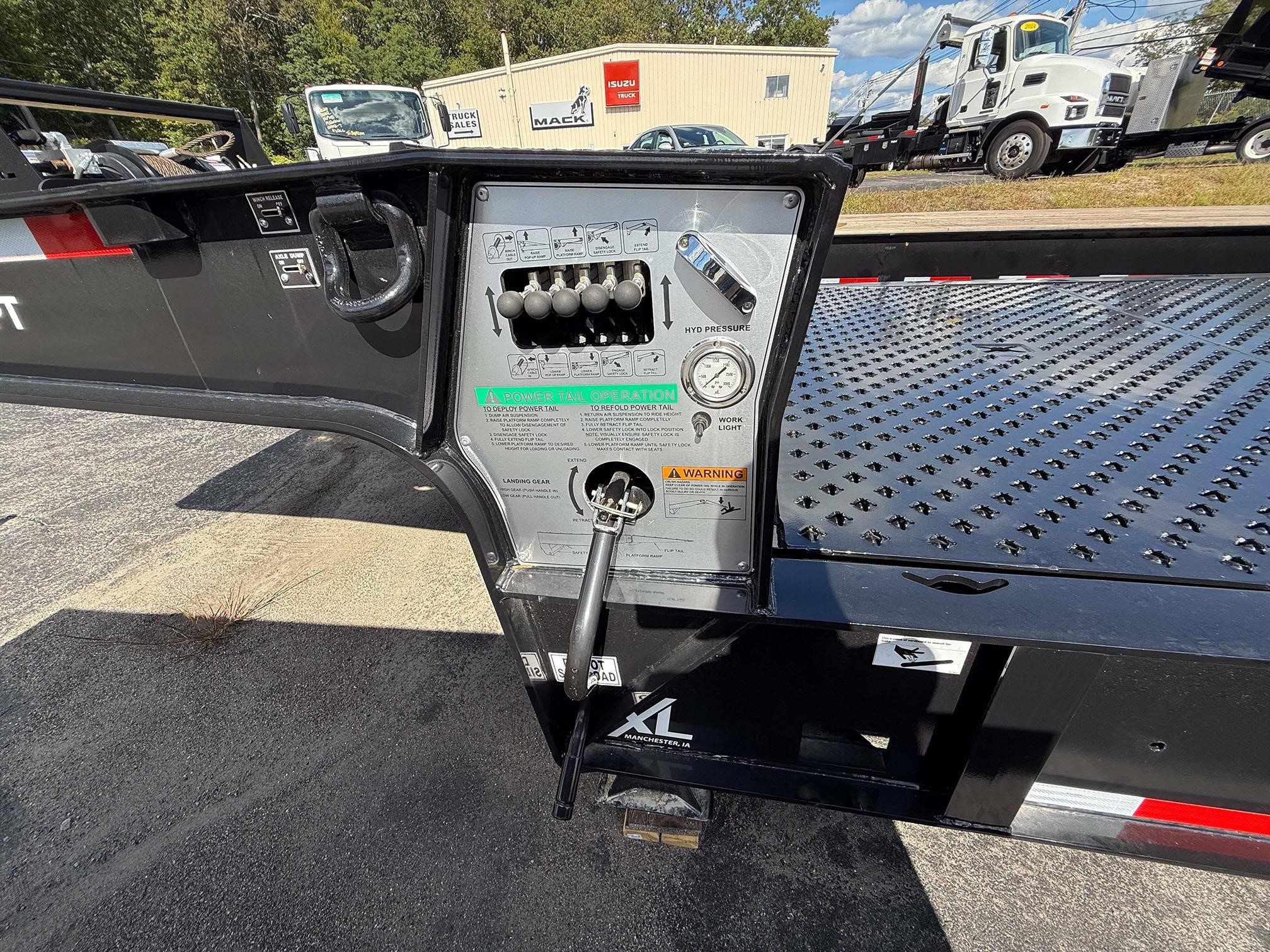

HYD. CONTROLS LEVERS
ROLLERS ( 1 ) RECESSED CABLE ROLLER ON REAR OF GOOSENECK

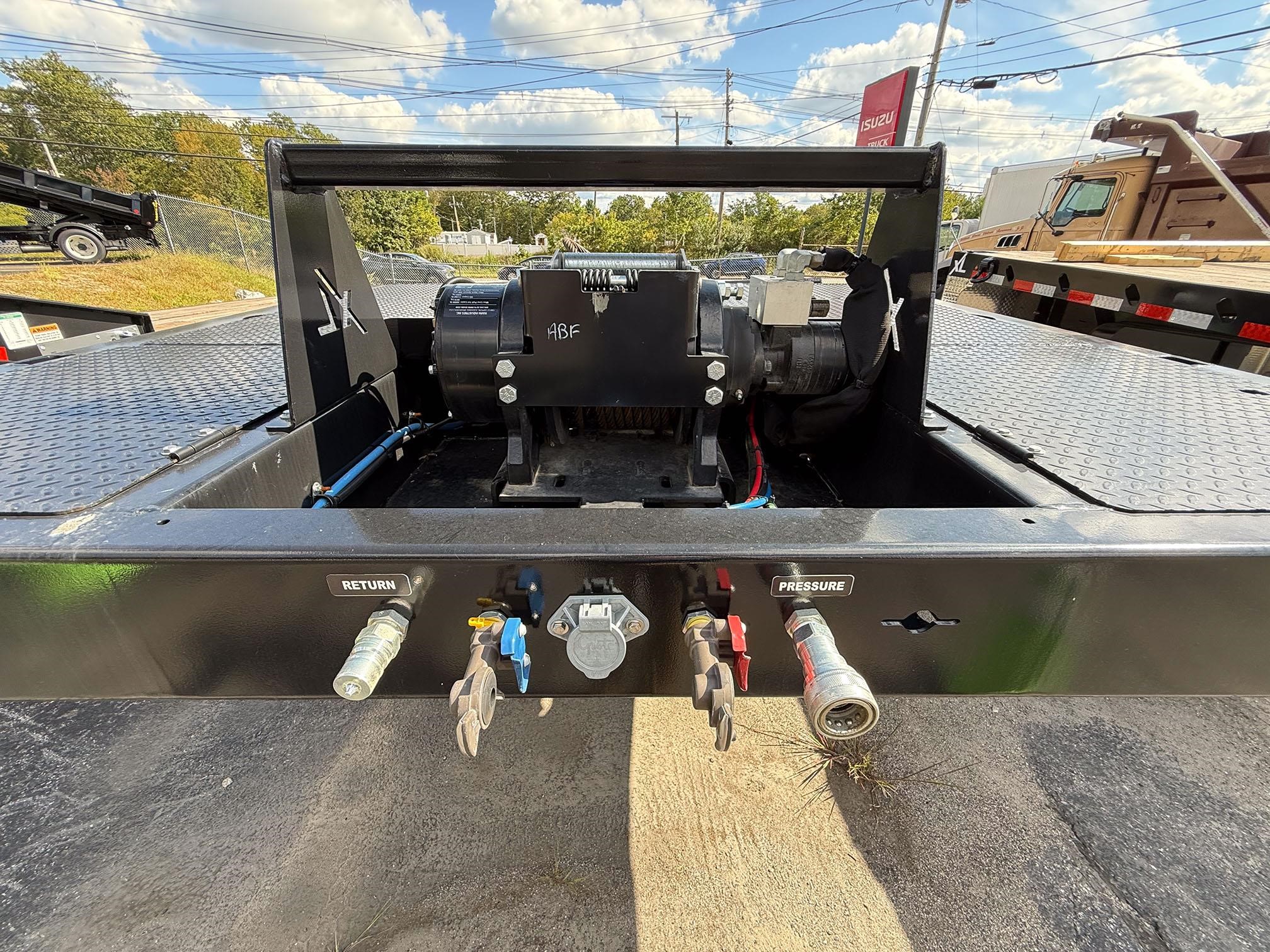

WINCH 20,000 LB. HYD. WINCH WITH 100′ OF 9/16″ CABLE
WINCH KICK OUT AIR

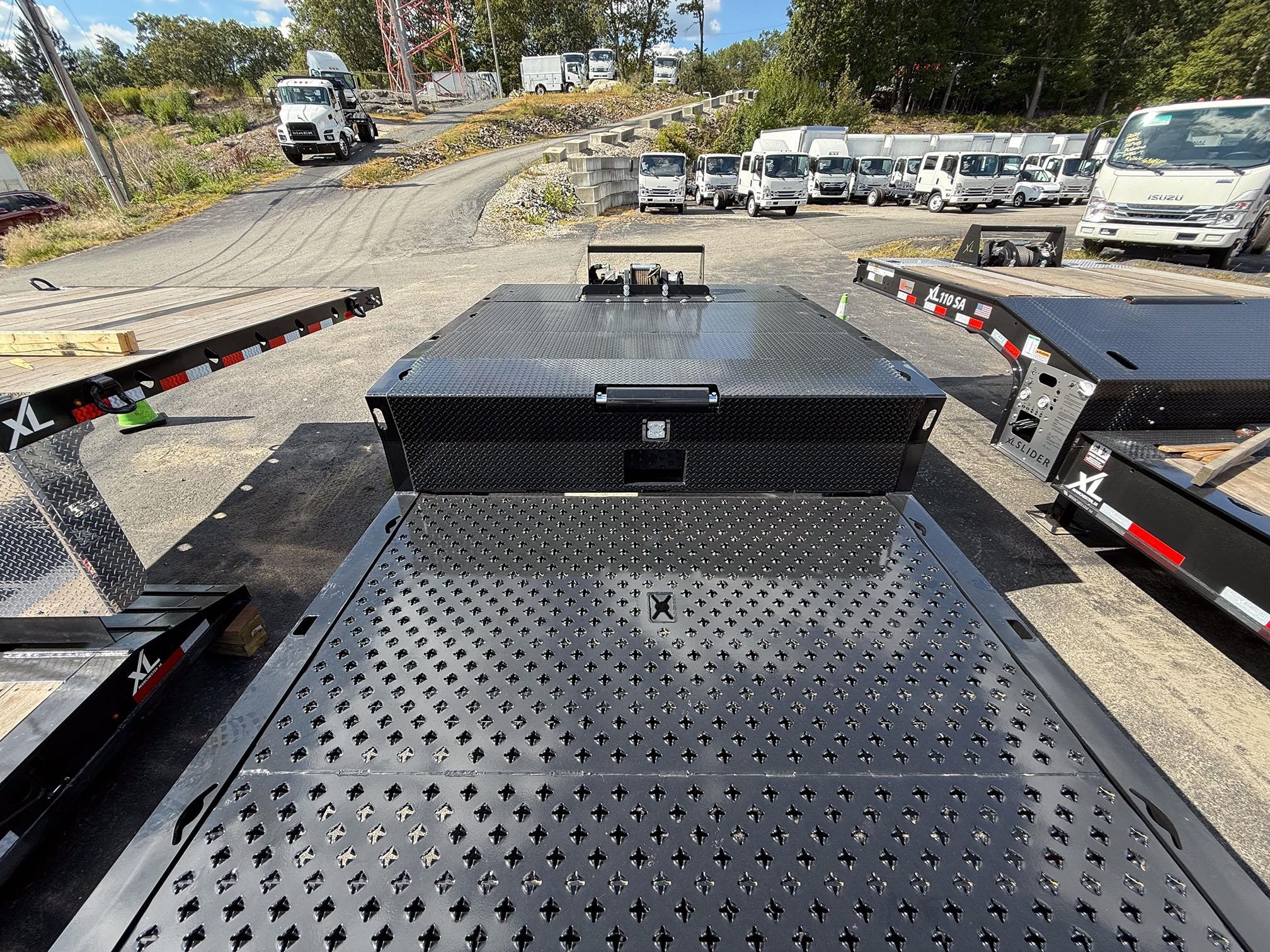

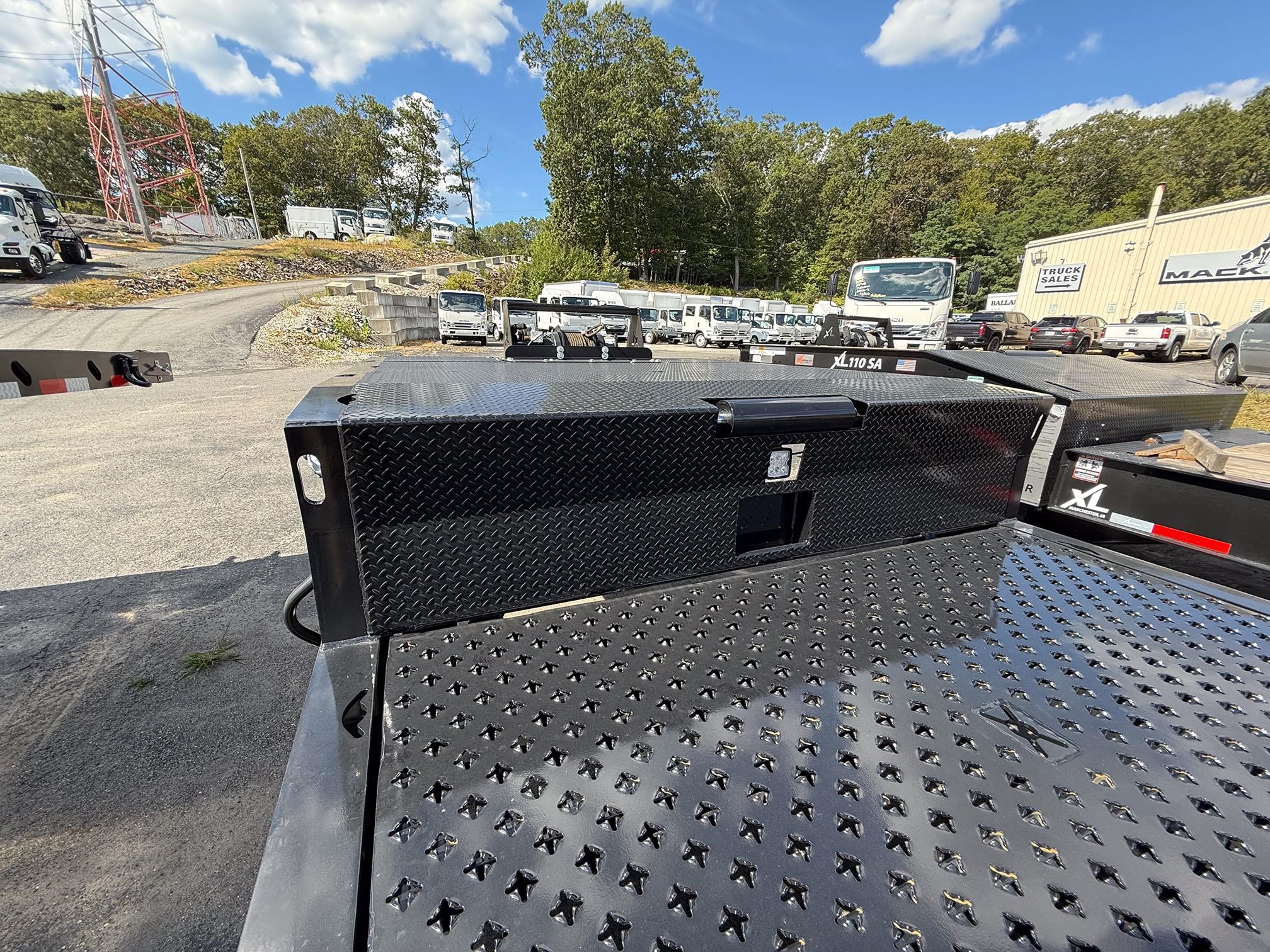

TOOL BOX ( 2 ) TOOLBOXES RECESSED TOP OF NECK, WITH STEEL LIDS – TOP HINGE; BOLT-ON WINCH GUARD 25
BOTTOM DECK
LENGTH 30′ 4″
LOADED DECK HEIGHT 39″
DECKING 1 3/8″ APITONG DECKING RAISED
CROSSMEMBER 10″ & 8″ JR I-BEAMS ON 12″ CENTERS
BEAMS 18″ FABRICATED I-BEAMS
D-RINGS ( 5 ) BENT D-RINGS PER SIDE
CHAIN DROPS ON 24″ CENTERS ALTERNATING WITH STAKE POCKETS OUTSIDE BEAMS
CHAIN DROPS ON 48″ CENTERS DOWN CENTER OF TRAILER
STAKE POCKETS ON 24″ CENTERS ALTERNATING WITH CHAIN DROPS OUTSIDE BEAMS
AXLES ( 2 ) 25,000 LBS. NOMINAL, (5/8″ WALL)
SUSPENSION HENDRICKSON / 25,000 CAPACITY / AIR RIDE
AXLE SPACING 49″
ABS 4S2M SPRING BRAKES ON ( 2 ) AXLES
TIRES 255 / 70R / 22.5 ( H )
WHEELS 8.25 X 22.5 10-HOLE PILOT MOUNT POLISHED ALUMINUM OUTSIDE, STEEL INSIDE DISC
BRAKES 16 1/2″ X 7″
DRUMS OUTBOARD

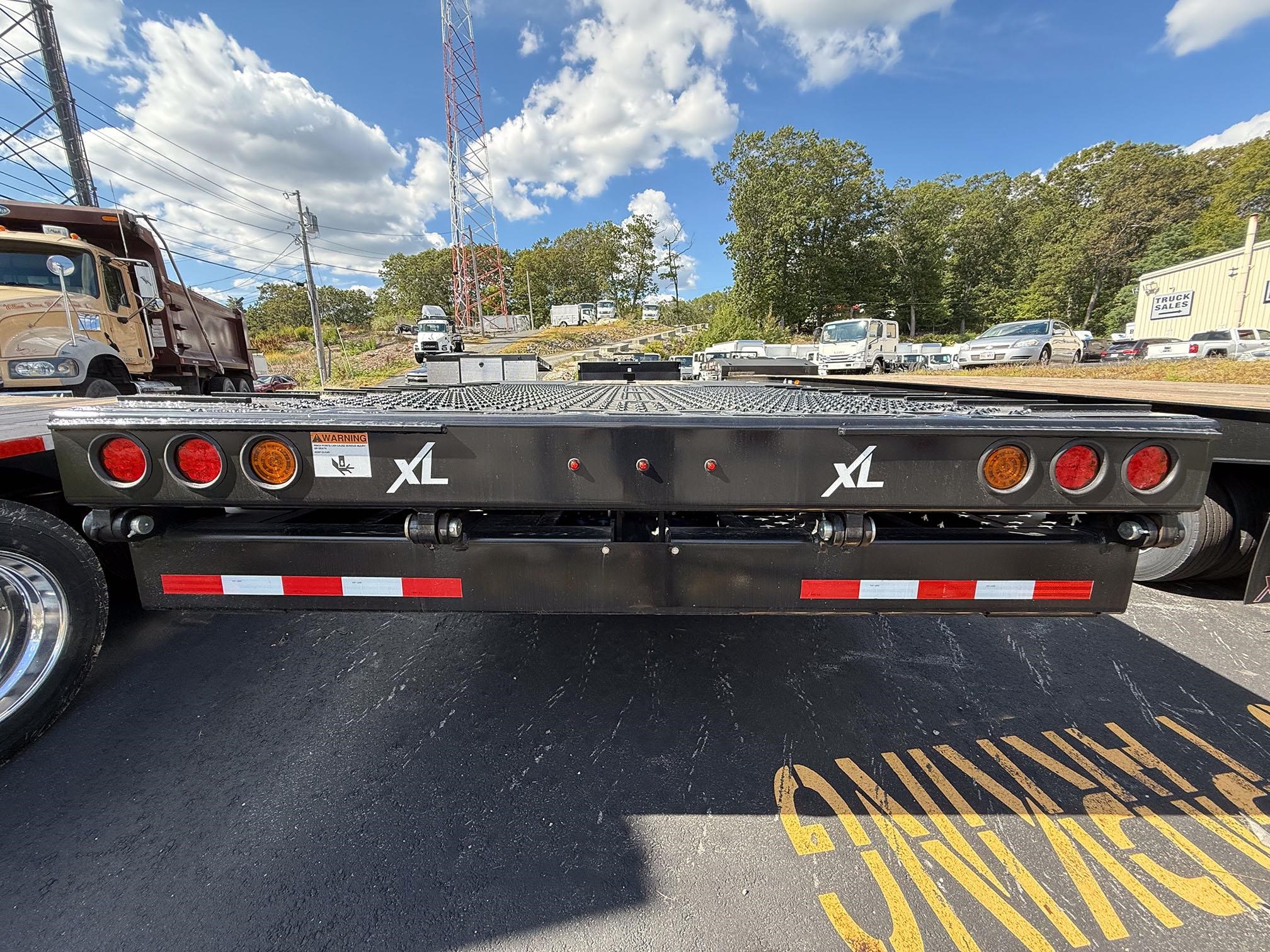

ELECTRICAL 12V SEALED GROTE SYSTEM WITH ( 3 ) TAILLIGHT PACKAGE; 4″ AMBER STROBE TO BE USED AS 3RD TAIL LIGHT; FOOT STEP AND GRAB HANDLE ON BOTH SIDES
TAIL
13′ 8″ HYDRAULIC TAIL WITH 60″ FOLD UNDER
8′ 8″ PLATFORM
AUTOMATIC FLIP TAIL LOCK

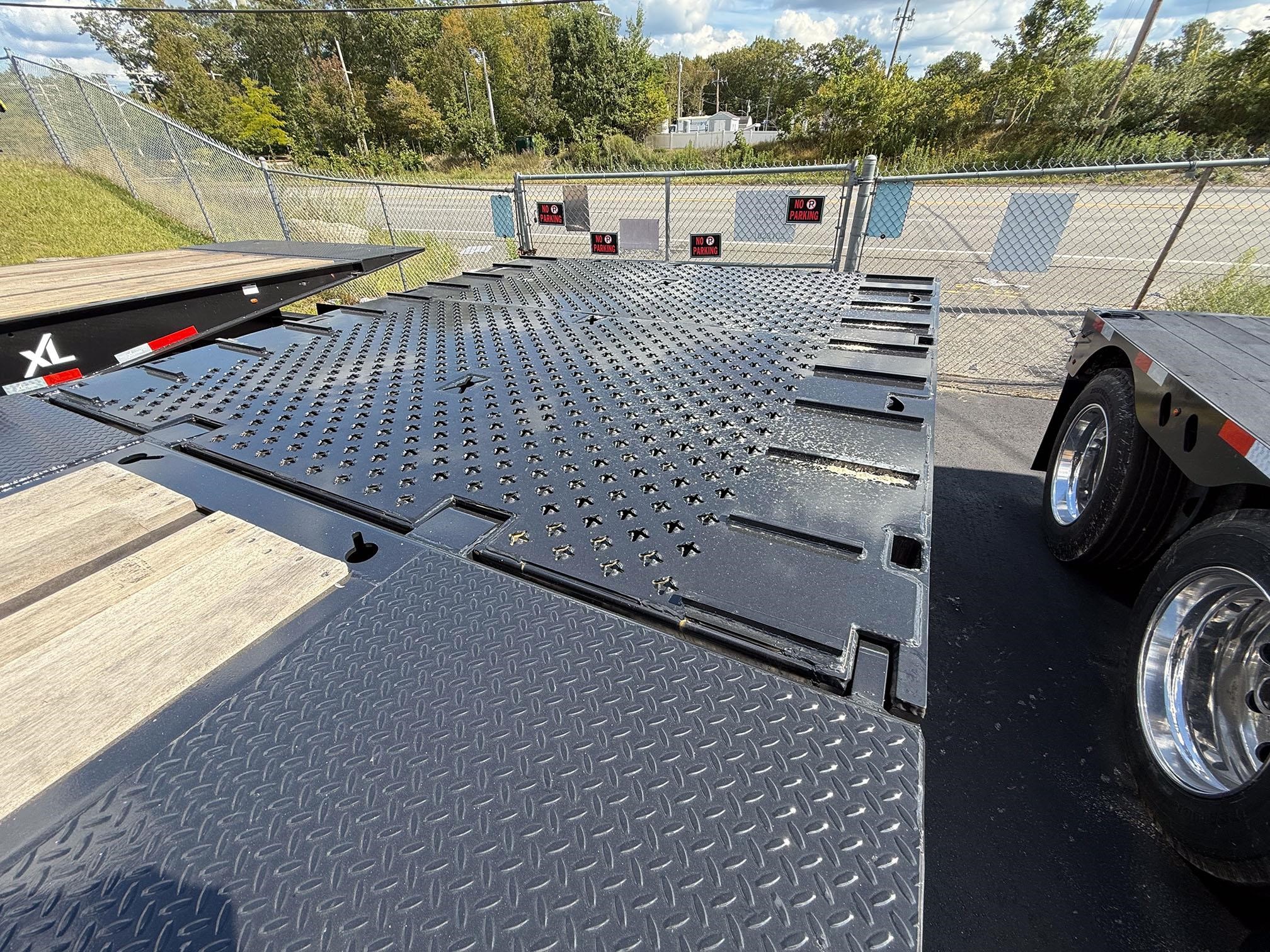

TRACTION AIDS
STAR TRACTION PLATE
STANDARD COUNTER BALANCE HYDRAULIC VALVE FOR PROTECTION
ADDITIONAL
9′ POP UP RAMP TO GO FROM MAIN DECK TO UPPER DECK
10 FUNCTION WIRELESS REMOTE
AIR DUMP ON ALL AXLES
HUBOMETER ON ROADSIDE REAR AXLE
AIR WEIGH SCALE
ALL CLEARANCE LIGHTS TO BE MICRONOVA
4-WAY PLUG AT REAR
PSI TIRE INFLATION SYSTEM
